由于该产品已进行多次功能升级和更新迭代,我们不保证BX51P奥林巴斯偏光显微镜提供的图片和各项参数等信息均为最新,我们建议您点击此处联系我们的在线工程师为您服务,同时我们也欢迎您电话咨询:!

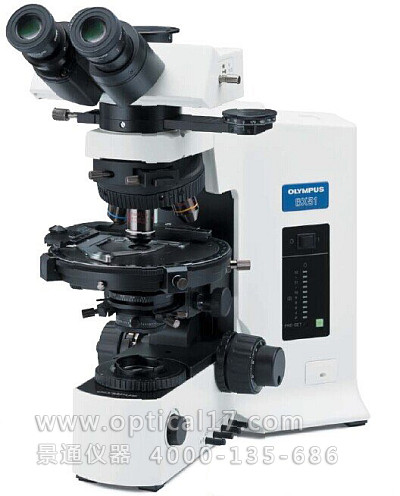

BX51P奥林巴斯偏光显微镜产品特点:
1、专业偏光显微镜用于地质、石油、化工、高分子、液晶等领域;
2、专用消应力物镜提供高清晰、高反差的图像;
3、用于单偏光、正象镜检、锥光镜检等多种观察;
4、透射、反射、透反射3种主要照明方式,12V/100W光源;
5、长寿命卤素光源使用;
6、热台、阴极发光等专业附件配套
BX51P奥林巴斯偏光显微镜配置案例:
OLYMPUS BX51P 研究级偏光显微镜 | ||||
显微镜镜体部分 | ||||
透反射一体显微镜架体 | BX51TRF-6© | Micrscope frame for transmitted and reflected microscopy with built-in filter holders for four filters (LBD,ND6, ND25,an open position for an optional filter of 45mm dia.), including hexagonal driver AB8804, immersion oil 8cc and shield sticker AD4908 (2pcs.) Corresponded to WEEE and RoHS regulations | 1个 | |
电源线 | UYCP-33 | Power cord | 1个 | |
防尘罩 | COVER-018 | For BX40/50/60/60M | 1个 | |
灯箱 | U-LH100-3-7(C) | Lamp house for 100W halogen including long connectioncord | 2个 | |
高亮度长寿命灯泡 | JC12V100WHAL-L | Halogen bulb (Philips No. 7724) | 8个 | |
三目观察筒 | U-TR30-2 | Trinocular tube | 1个 | |
10倍标准高眼点宽视野目镜,视野数22 | WHN10X-1-7 | Widefield eyepiece 10X | 1个 | |
屈光度校准目镜 | WHN10X-H-1-7 | Widefield eyepiece 10X, focusable | 1个 | |
目镜测微尺 | U-OCMC10/100X | Cross lines and 10mm/100 on X | 1个 | |
测微台尺 | OBM1/100 | Stage micrometer, 1mm/100 for biological microscopes | 1个 | |
光路附件 | ||||
透射光摆入摆出聚光镜 | U-SC3 | Swing-out condenser N.A. 0.9-0.16 | 1个 | |
白平衡滤色片 | U-25LBD | LBD filter slider for reflected illumination tube | 1个 | |
明暗场反射光路 | BX-RLA2 | Incident bright field/dark field illumination tube withaperture stop, field stop and filter slots | 1个 | |
专业偏振光 装置 | ||||
十字丝目镜 | CROSSWHN10X-1-7 | Widefield eyepiece 10X, with double cross lines, focusable | 1个 | |
反射光起偏器 | U-PO3 | Polarizer slider for reflected illumination tube | 1个 | |
360度旋转带刻度检偏器(精度0.1度) | U-AN360P | Graduated rotatable analyzer | 1个 | |
透射聚光镜(内置透射起偏器) | U-POC | Polarizing condenser,N.A. 0.9-0.18 (Swing out type) | 1个 | |
补偿板插槽 | U-TAD | Adapter slider for compensator | 1个 | |
1/4波长补偿板 | U-TP137 | 1/4 wavelength retardation plate | 1个 | |
1波长补偿板 | U-TP530 | Tint plate | 1个 | |
旋转载物台 | U-SRP | Circular rotatable stage, graduated, including stage insert plate AC1211, centering knob (1 pair) and stage clip B2-SCB2 (1 pair) | 1个 | |
XY 移动片夹 | U-FMP | Attachable mechanical stage, graduated | 1个 | |
高级检偏器附件 | U-OPA | Polarizing intermediate attachment for Orthoscopic observation including orientation plate (B2-PJ) | 1个 | |
物镜 及物镜转盘 | ||||
4 孔可定心物镜转盘 | U-P4RE | Quadruple, revolving nosepiece,including centering knob (1 pair) | 1个 | |
5倍半复消色差物镜 | MPLFLN5X | M Plan Semi Apochromat objective lens 5x/N.A. 0.15, W.D. 20mm | 1个 | |
10倍半复消色差物镜 | MPLFLN10X | M Plan Semi Apochromat objective lens 10x/N.A. 0.3, W.D. 11mm | 1个 | |
50倍半复消色差物镜 | MPLFLN50X | M Plan Semi Apochromat objective lens 50x/N.A. 0.8, W.D. 1.0mm | 1个 | |
20倍 长焦距物镜 (工作距离 12mm) | LMPLFLN20X | Long WD M Plan Semi Apochromat objective lens 20x/N.A. 0.4, W.D. 12mm | 1个 |
作为OLYMPUS奥林巴斯偏光显微镜BX51P的厂家长期合作经销商,景通仪器承诺所销售的OLYMPUS奥林巴斯偏光显微镜百分之百正品,您可以通过景通仪器网站详细了解OLYMPUS奥林巴斯偏光显微镜BX51P的详细介绍、性能配置、产品参数、使用注意事项、参考销售价格等。
